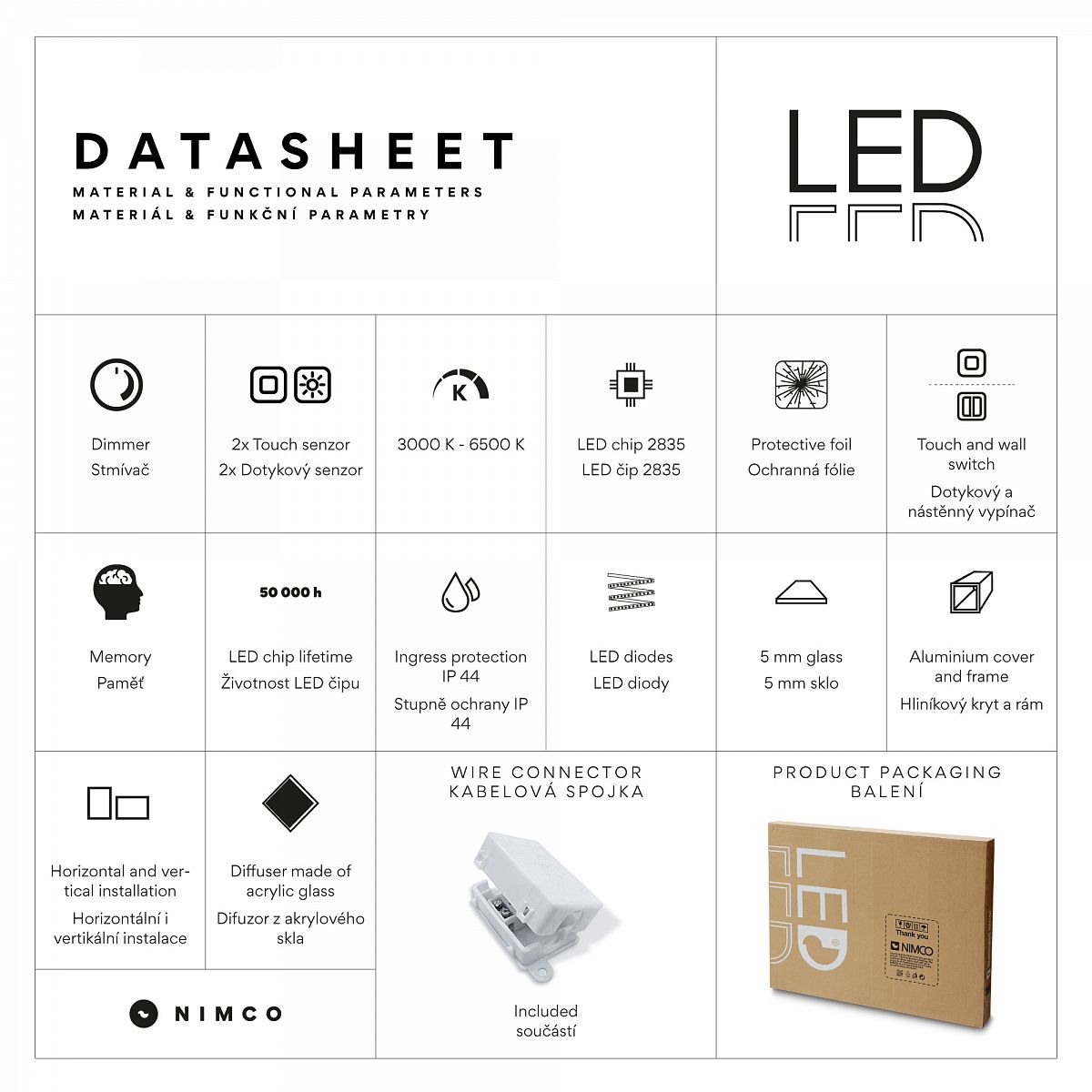

M A T E R I A L & F U N C T I O N A L P A R A M E T E R S

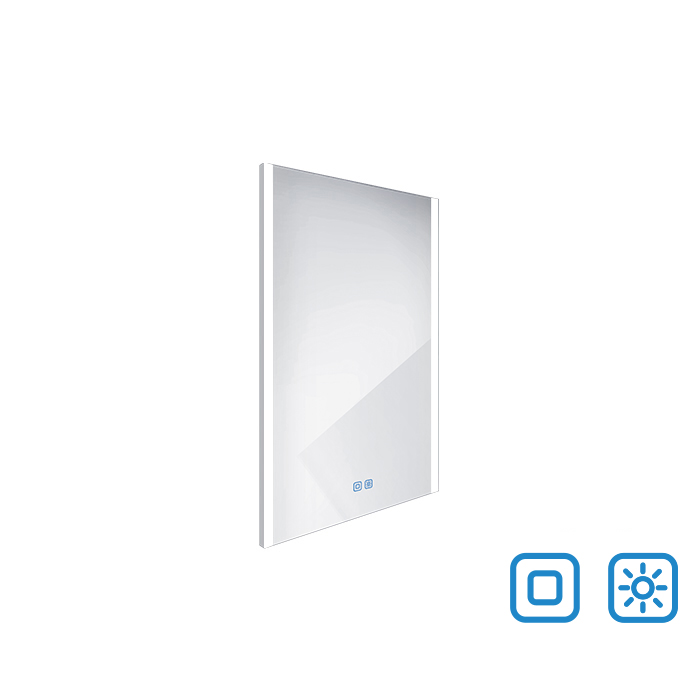

NIMCO - Touch sensors LED mirrors

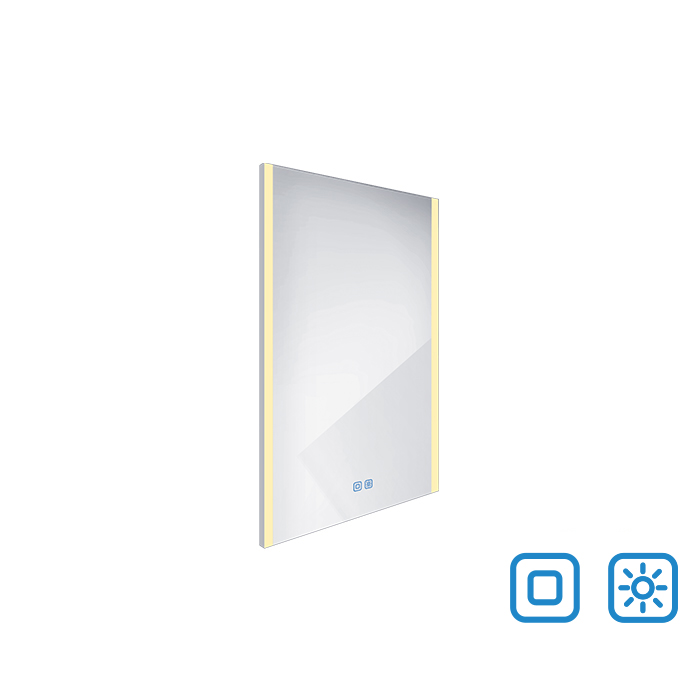

Mirrors with two touch sensors: Connection options.The first option is to connect directly to the electrical circuit.

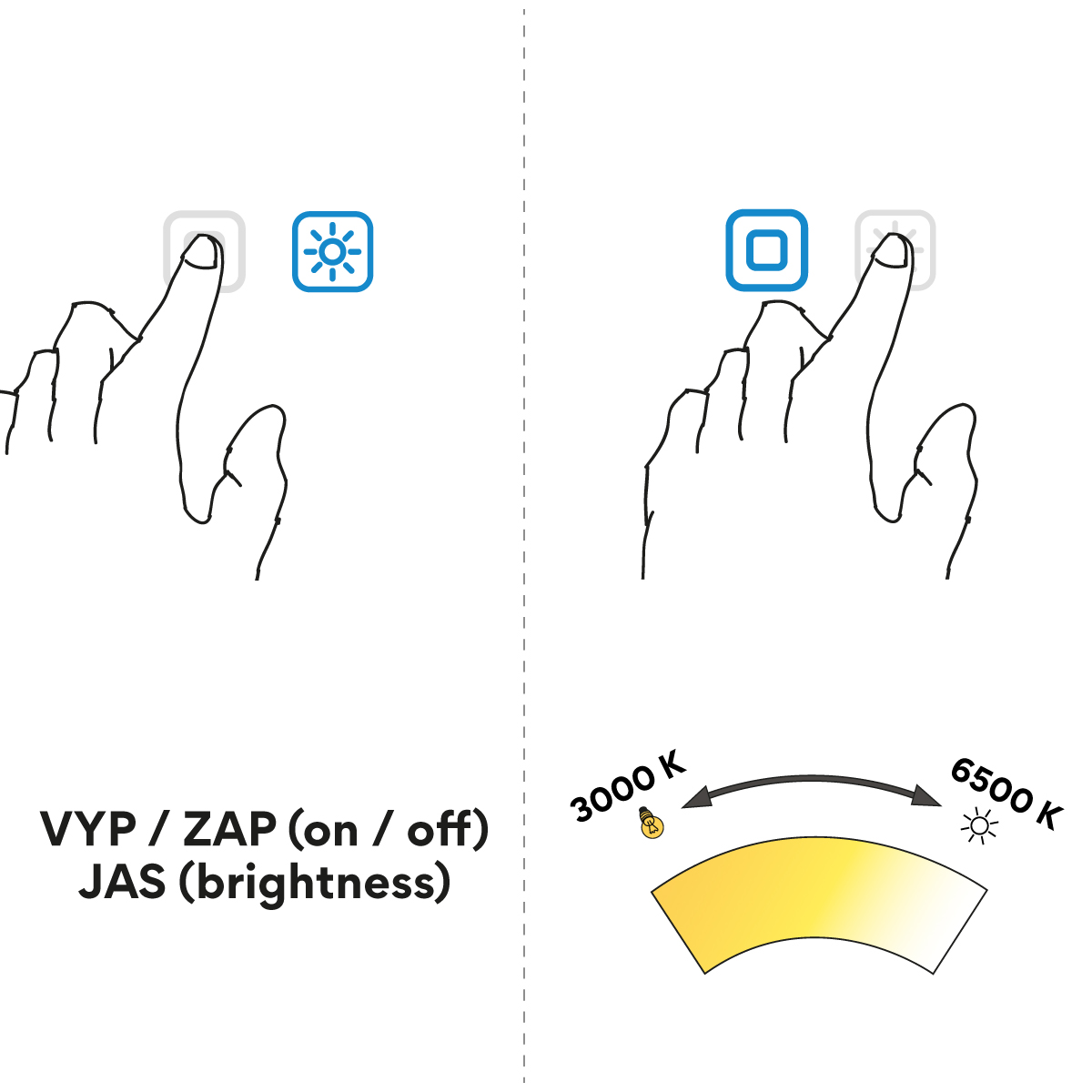

The left sensor : a short touch of the finger controls the switching on and off of the mirror. By holding your finger on the sensor, the intensity of the light (brightness of the mirror) is adjusted. Right sensor: It is possible to select from warm white (3000 K) to colder white (6500 K). It is also possible to quickly adjust the colour by a short touch of the finger: warm white (3000 K), another short touch white (4500 K) and a third touch cold white (6500 K).
The second option is to connect the mirror to a classic cradle switch in the bathroom, just like other light fittings.
Left sensor: A short touch of the finger controls the mirror on and off. Holding your finger on the sensor adjusts the intensity of the light (brightness of the mirror). Right Sensor: By holding your finger on the right sensor, the luminance colour temperature is gradually adjusted. It is possible to select from warm white (3000 K) to colder white (6500 K). It is also possible to quickly adjust the colour by a short touch of the finger: warm white (3000 K), another short touch white (45000 K) and a third touch cold white (6500 K).
The mirror is equipped with a memory, so that even when the rocker switch is turned off, it remembers all settings. Therefore, if you switch off the mirror using the touch sensor, it will not be possible to light it with the cradle switch.
Advantages: Option to choose your preferred white color temperature and brightness. Conveniently switch the mirror light on or off when standing in front of the mirror. Great for modern technology lovers. Disadvantages: none
INSTALLATION INSTRUCTION - DRILLLING NIMCO general illustrated assembly instructions.
The product includes screws and dowels. It can be used in concrete and cladding, which has a thickness of up to 8 mm.
Correct combination of dowels and screws for:
CONCRETE - dowel diameter 6, screw min. 3.5 * 40mmBRICK - dowel diameter 6, screw min. 3.5 * 40mmRIGIPS - dowel fastening to plasterboard and hollow materials diameter 6mm, dowel lenght 35mm, screw 3.5 * 40mmFLOOR - dowel and screw - MUST be used with thickness of the given tiles (pavement)
-drilling into joints
DOWNLOAD (.pdf)
MAINTENANCE FOR LED MIRRORS The mirror is basically maintenance-free. The outer side of the mirror requires washing by classic detergents for washing windows. Do
To clean the mirrors, simply use the cloths, which can be ordered under the article numbers RP 1006 and RP 1006 SET. These cloths are great helpers in the home, ideal especially for cleaning mirror and glass surfaces. Thanks to their high quality, they ensure perfect results every time they are used, without the need for chemicals.
Warning! Before operating the mirror, you have to turn the mirror off and turn off the electricity supply as well. Electric equipment of the mirror is
